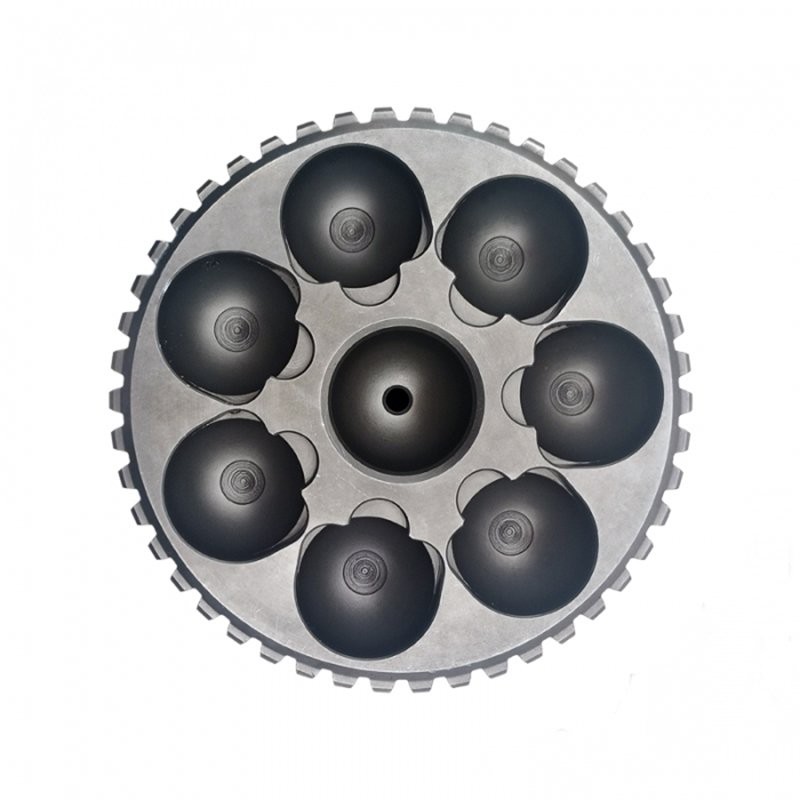

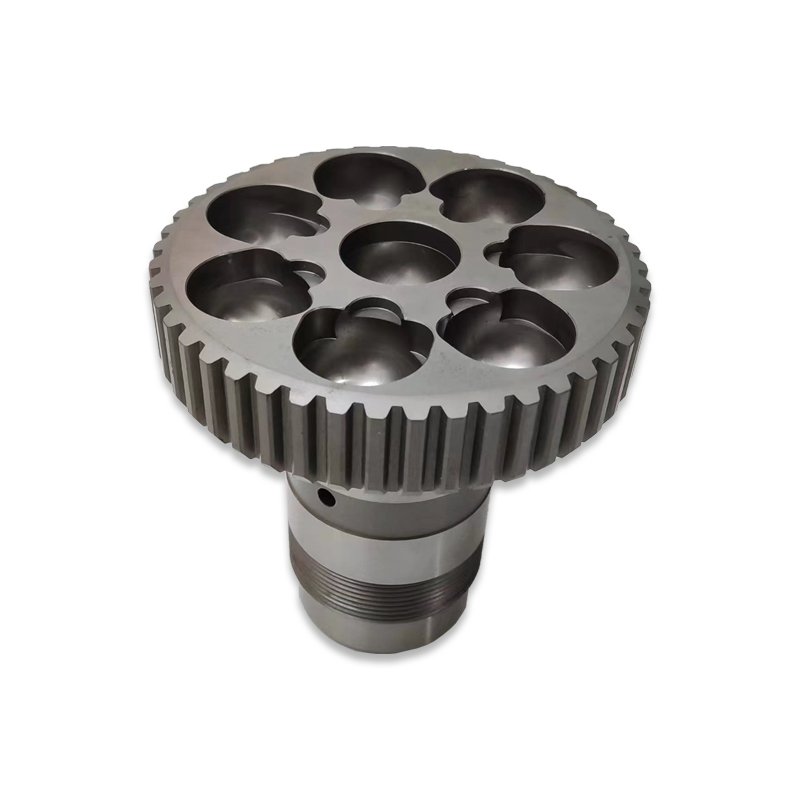

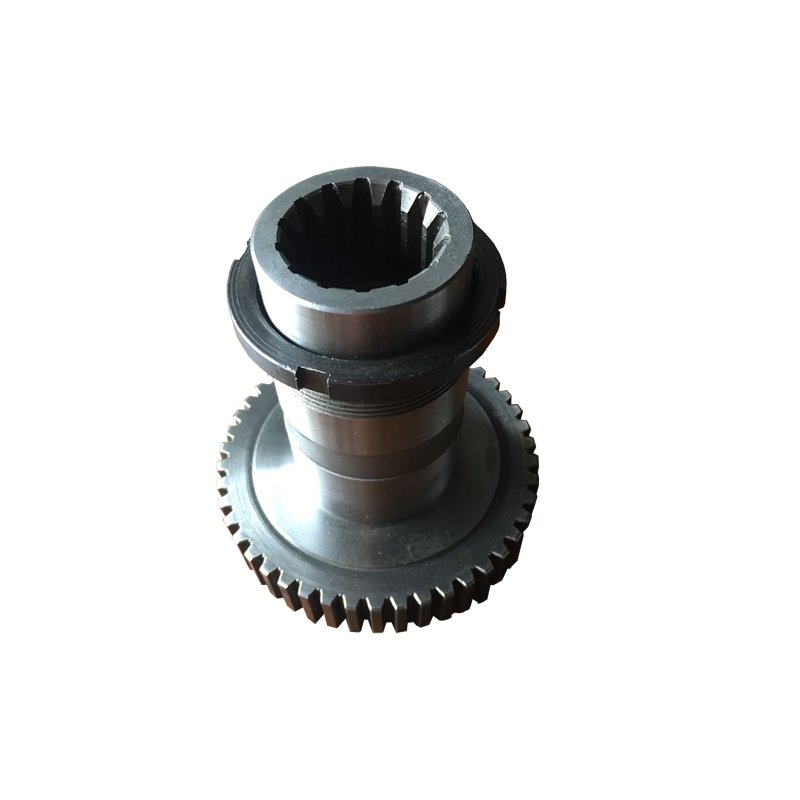

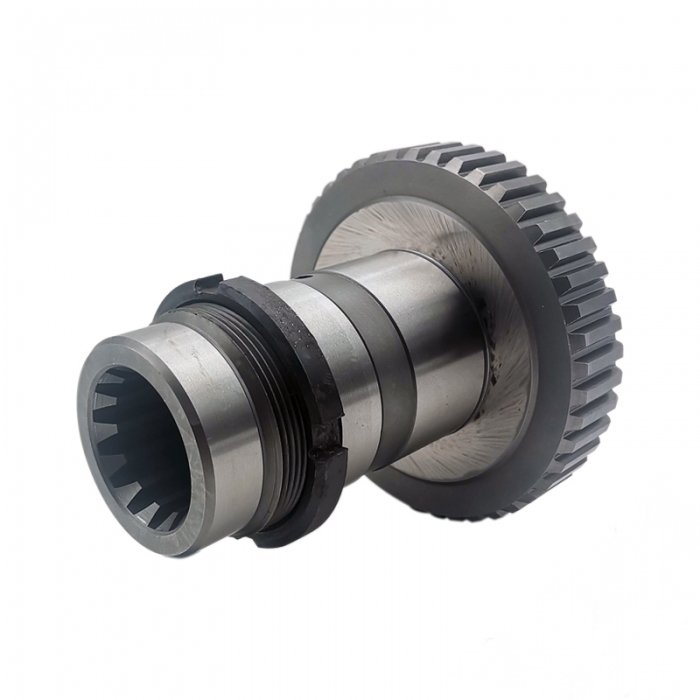

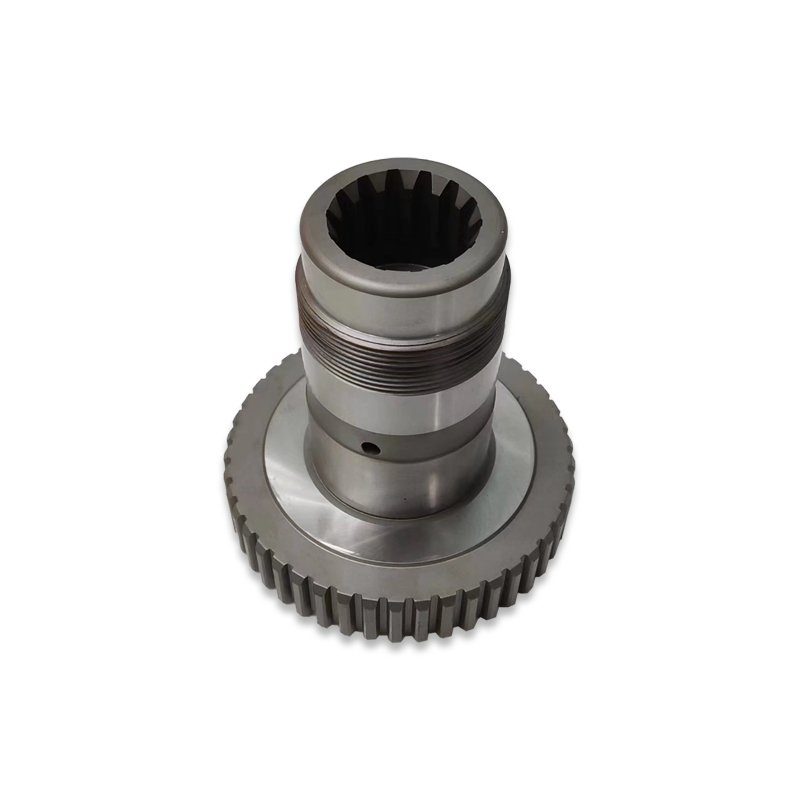

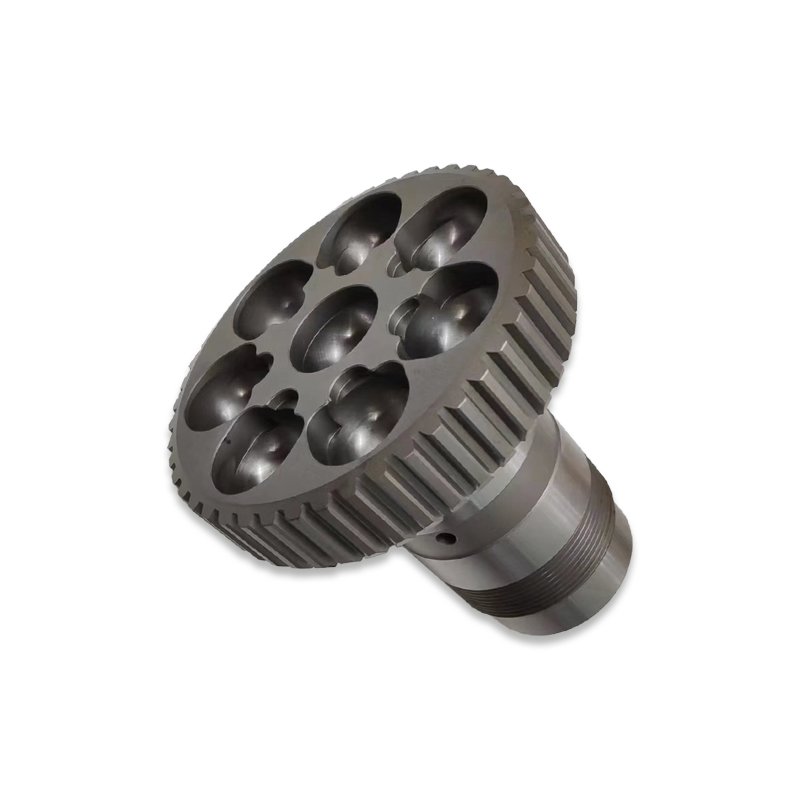

Name: Travel Motor Shaft Driving Disc 2026713 AT154650 Fit Hitachi Excavator EX200 EX200-1 ZX200
Price: 285.00 USD
Availability: InStock

Travel Motor Shaft Driving Disc 2026713 AT154650 Fit Hitachi Excavator EX200 EX200-1 EX200-2 EX200-3 EX200-5 ZX200 200 230LC John Deere 790ELC

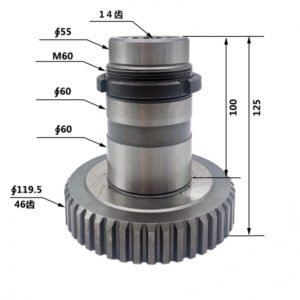

Dimensions: (±1~2 mm)

Big End: OD 119.5 mm, 46 Teeth
Small End: 14 Splines
Overall Length: 124 mm

A motor mounting shaft is a rotating component of an electric motor that is used to transmit torque from the motor to the mechanical load it is driving. The motor shaft is typically a cylindrical metal rod that extends from the center of the motor and rotates at a high speed. The motor shaft is supported by bearings, which allow it to rotate smoothly and with minimal friction.

Attributes:
• Durability and resistance to wear, corrosion, and other environmental factors.
• Designed to allow for a tight fit with other components, such as gears or couplings.

Reference Part Number: 2026713 AT154650

Application: Compatible with Hitachi Excavator EX200 EX200-1 EX200-2 EX200-3 EX200-5 ZX200 200 230LC, John Deere Excavator

EX200 1 EX200 2 EX200 3 EX200 5 2026713 行走马达莲花轴 17

2026713

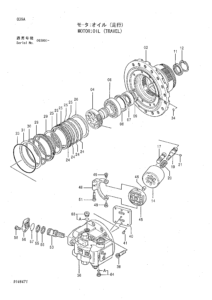

Parts on group (TRAVEL):

Pos. Part No Qty Parts name Comments

9101523 [1] MOTOR;OIL 9101523A

01.1014547 [1] HOUSING

04.2026713 [1] DISC;DRIVING

06.4198783 [1] BRG.;ROL.

07.4198998 [1] BRG.;ROL.

08.4222980 [1] SPACER

09.4178173 [1] NUT;BRG.

11.4260561 [1] SEAL;OIL

12.4116290 [1] RING;RETAINING

14.2032256 [1] ROTOR

17.8050658 [7] PISTON

19.4262045 [1] SHAFT;CENTER

20.4246613 [1] SPRING;COMPRES.

21.4198956 [1] PIN

22.4234229 [1] RING;RETAINING

24.3037401 [4] PLATE;FRICTION

25.3032432 [5] PLATE

26.4246784 [1] SPACER

28.3047473 [1] PISTON

29.4232766 [1] D-RING

30.4232767 [1] D-RING

31.3047472 [1] SPRING;DISC

33.4248871 [1] O-RING

34.4506415 [1] O-RING

37. 9101524 [1] VALVE;BRAKE 9101524A

38.M341650 [8] BOLT;SOCKET

40.3050071 [1] PLATE

41.4266256 [2] PIN;KNOCK

45.1016649 [1] VALVE

46.4234628 [1] BUSHING

48.3052403 [1] LINK

49.4255238 [2] PLUG

51.4262561 [1] BOLT;REAMER

54. 9101386 [1] PISTON;SERVO 9101386

55.4260308 [2] RING;PISTON

56.4275286 [1] COVER

57.4265579 [1] O-RING

58.M341225[4] BOLT;SOCKET

60.9089487 [1] PLUG

60A.4506418[1] O-RING

62.9089484 [2] PLUG

62A.4506408 [1] O-RING

Weight	2 KGS
Category Final Drive	Travel Motor Shaft
