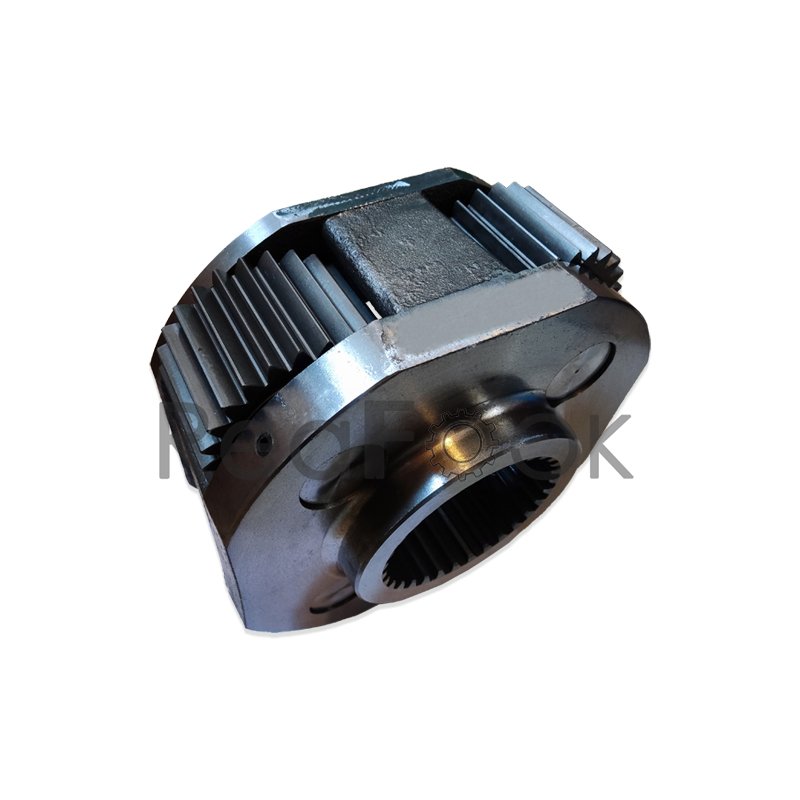

Swing Planet Carrier VOE14622908 with Sun Gear Fit Volvo Excavator EC380D EC350E EC380EHR

Product Name: Planet Carrier Assembly
Reference Part Number: VOE14622908, VOE14622913
Compatible Machine: EC380D

The Swing Drive Planetary Carrier is a mechanical assembly designed to control and facilitate the rotational movement of the upper structure of heavy machinery, particularly in construction and excavation equipment.

Parts on group Swing gearbox:
Nos. Part No. Qty Parts name
VOE14622901 [1] Swing gearbox
VOE14680015Swing gearbox
1. VOE14622865 [1] Shaft
2. VOE14622869 [1] Collar
3. VOE14622894 [1] Roller bearing
4. VOE14622895 [1] Plate
5. VOE14622896 [1] Collar
6. VOE14622897 [1] Case
7. VOE14622898 [1] Retainin ring
8. VOE14622899 [1] Retainin ring
9. VOE14596611 [1] Seal
10. VOE14640028 [1] Bearing
11. SA9324-21317 [4] Pin
12. VOE14622914 [1] Gear
13. VOE14622908 [1] Planet carrier
13A. VOE14622910 [4] Gear
13B. VOE14622911 [4] Bushing
13C. VOE14622912 [4] Pin
14. VOE14596618 [4] Washer
15. VOE952004 [4] Spring pin
16. VOE14622913 [1] Gear
17. VOE14596621 [1] Thrust washer
18. VOE14622902 [1] Planet carrier
18A. [0003] Gear VOE14622904
18B. VOE14622905 [3] Bushing
18C. VOE14622906 [3] Pin
18D. VOE14596625 [0006] Washer
19. VOE14622907 [1] Gear
VOE14680062 Gear
20. VOE14596630 [1] Cover
VOE14633289 Cover
21. VOE995261 [16] Hex. socket screw
22. SA9415-43052 [2] Plug
23. SA9415-43012 [1] Plug
24. VOE914167 [1] Lubricating nipple
25. SA9411-92830 [2] Elbow nipple
26. VOE14529015 [1] Valve
27. VOE914472 Snap ring
28. VOE984138 [4] Hex. socket screw
VOE984139 Hex. socket screw
