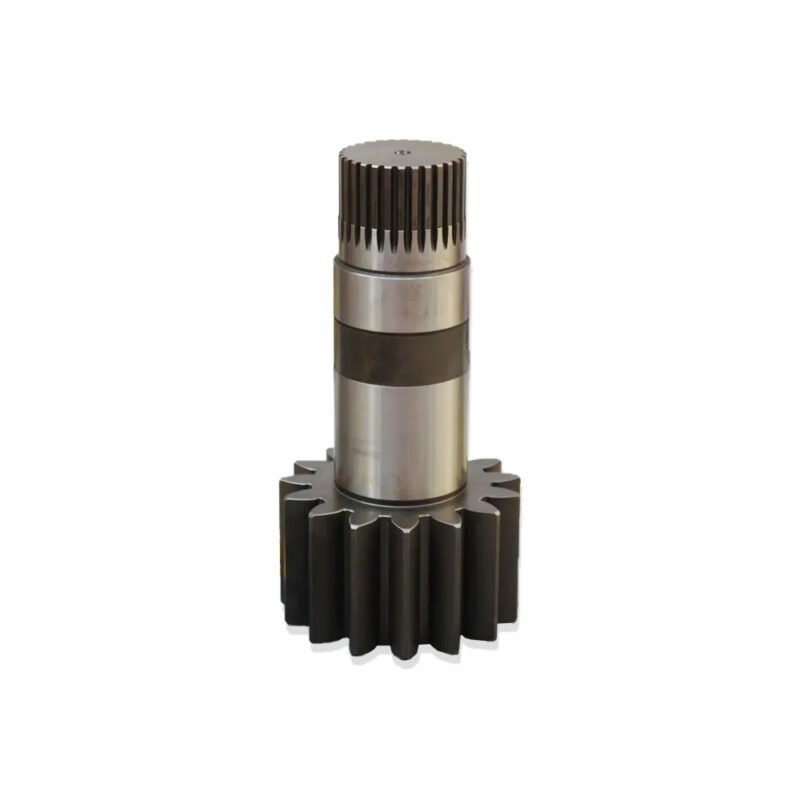

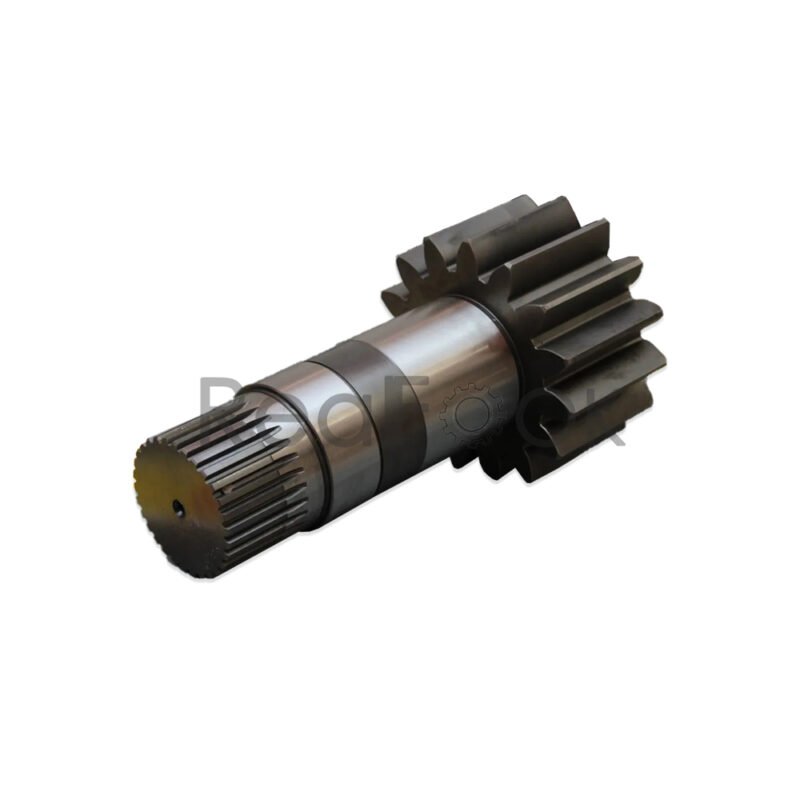

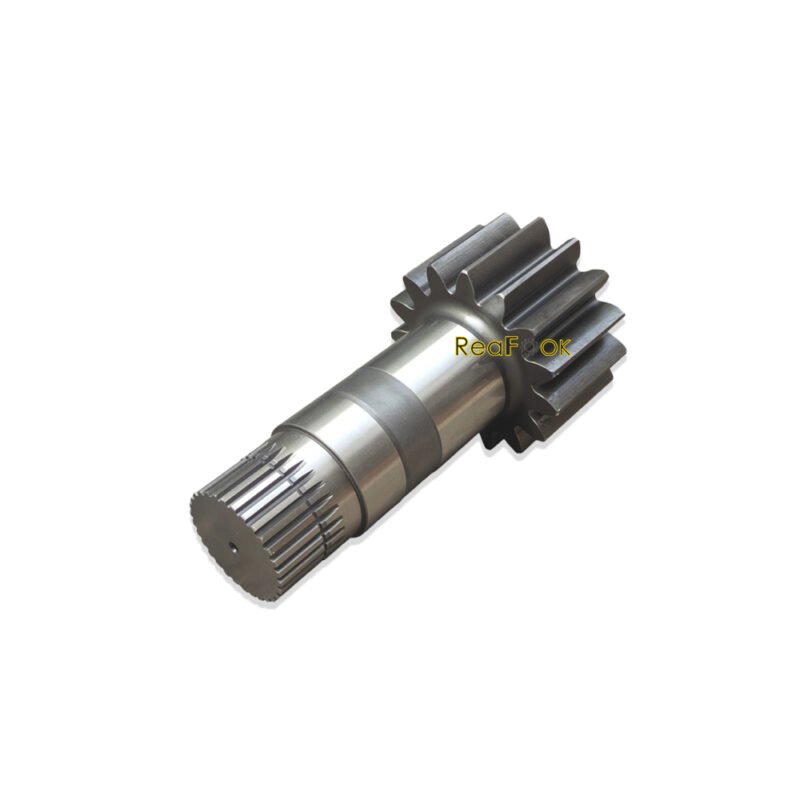

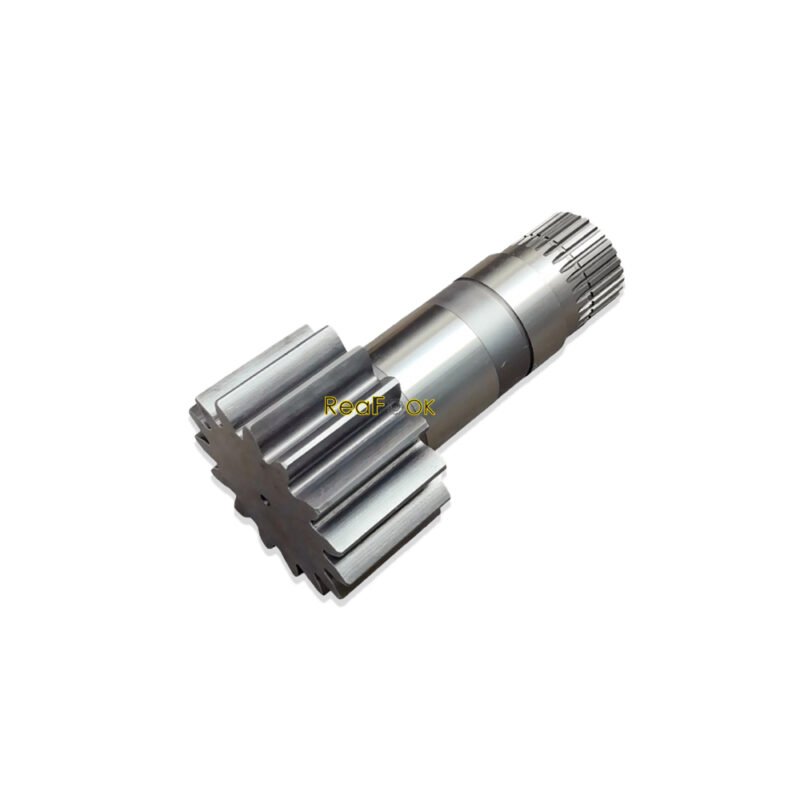

Swing Drive Pinion Shaft VOE14622865 Fit Volvo Excavator EC380D EC350E

Pinion shaft is used for the swing drive group that provides gear reduction between swing motor and swing gear, and method of holding upper portion of machine stationery in respect to lower portion of machine.

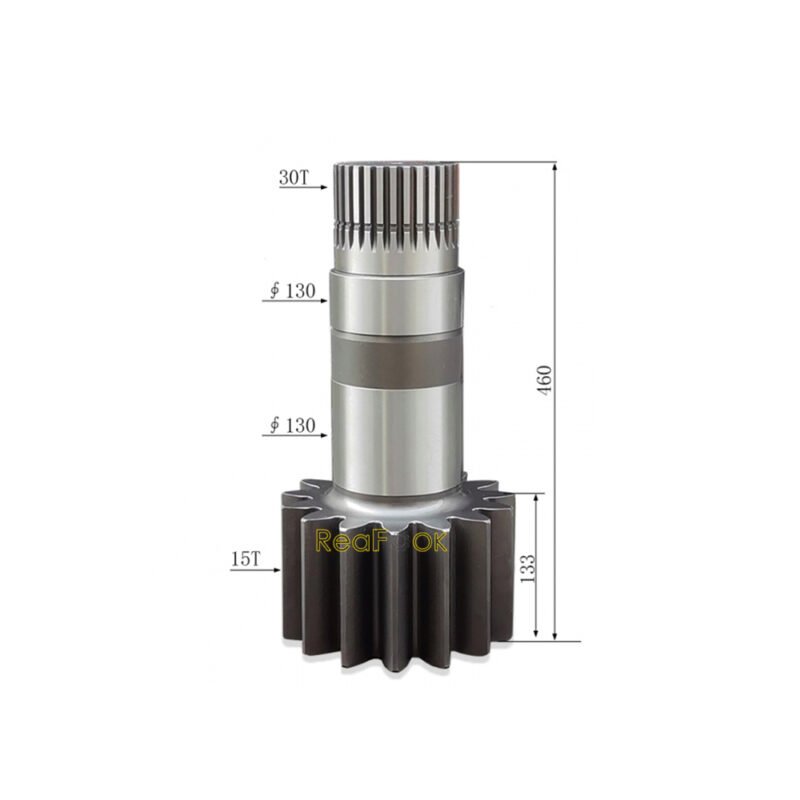

Attributes:
• Material: Steel
• Number of Teeth: 15
• Number of Splines: 30

Reference Part Number: VOE14622865
Compatible Machine: Volvo Excavator EC380D EC350E

Parts on group Swing gearbox:
Nos. Part No. Qty Parts name
VOE14622901 [1] Swing gearbox
VOE14680015Swing gearbox
1. VOE14622865 [1] Shaft
2. VOE14622869 [1] Collar
3. VOE14622894 [1] Roller bearing
4. VOE14622895 [1] Plate
5. VOE14622896 [1] Collar
6. VOE14622897 [1] Case
7. VOE14622898 [1] Retainin ring
8. VOE14622899 [1] Retainin ring
9. VOE14596611 [1] Seal
10. VOE14640028 [1] Bearing
11. SA9324-21317 [4] Pin
12. VOE14622914 [1] Gear
13. VOE14622908 [1] Planet carrier
13A. VOE14622910 [4] Gear
13B. VOE14622911 [4] Bushing
13C. VOE14622912 [4] Pin
14. VOE14596618 [4] Washer
15. VOE952004 [4] Spring pin
16. VOE14622913 [1] Gear
17. VOE14596621 [1] Thrust washer
18. VOE14622902 [1] Planet carrier
18A. [0003] Gear VOE14622904
18B. VOE14622905 [3] Bushing
18C. VOE14622906 [3] Pin
18D. VOE14596625 [0006] Washer
19. VOE14622907 [1] Gear
VOE14680062 Gear
20. VOE14596630 [1] Cover
VOE14633289 Cover
21. VOE995261 [16] Hex. socket screw
22. SA9415-43052 [2] Plug
23. SA9415-43012 [1] Plug
24. VOE914167 [1] Lubricating nipple
25. SA9411-92830 [2] Elbow nipple
26. VOE14529015 [1] Valve
27. VOE914472 Snap ring
28. VOE984138 [4] Hex. socket screw
VOE984139 Hex. socket screw
